PLASTIC INJECTION MOLDING MACHINE WATER COOLER TYPES
Whatsapp OrderWater cooler types used to cool the oil circulating in the hydraulic tank and system used in plastic injection machines
|

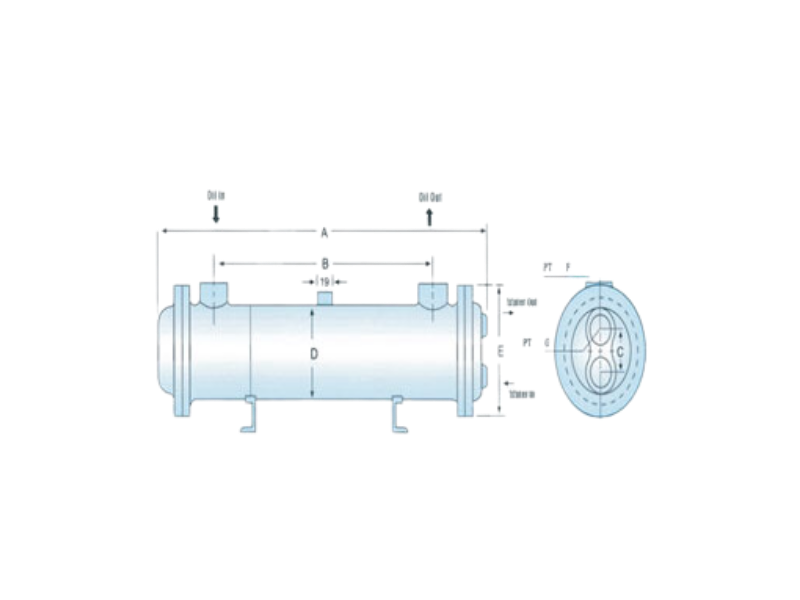

MODEL |
LENGTH MM. (A) |
OIL INLET / OUTLET CENTER MM. (B) |
WATER INLET / OUTLET CENTER MM. (C) |
COOLER OUTER DIAMETER MM. (D) |
COOLER OUTER COVER DIAMETER MM. (TO) |
WATER INLET SIZE INCH. (F) |
WATER OUTLET SIZE INCHES. (G) |
LITER / DK. |
|---|---|---|---|---|---|---|---|---|
|
OR-60 |
465 |
295 |
40 |
89,1 |
120 |
3/4 |
3/4 |
60 |
|
OR-100 |
540 |
370 |
55 |
114,3 |
140 |
3/4 |
3/4 |
100 |
|
OR-150 |
580 |
375 |
65 |
139,8 |
170 |
11/4 |
3/4 |
150 |
|
OR-250 |
800 |
600 |
65 |
139,8 |
170 |
11/4 |
3/4 |
250 |
|
OR-350 |
1205 |
1000 |
65 |
139,8 |
170 |
11/4 |
3/4 |
350 |
|
OR-600 |
1225 |
970 |
85 |
165,2 |
196 |
2'' |
11/2'' |
600 |
|
OR-800 |
1725 |
1470 |
85 |
165,2 |
196 |
2'' |
11/2'' |
800 |
|
OR-1000 |
2140 |
1890 |
85 |
165,2 |
196 |
2'' |
11/2'' |
1000 |
|
OR-1250 |
2520 |
2270 |
85 |
165,2 |
196 |
2'' |
11/2'' |
1250 |
